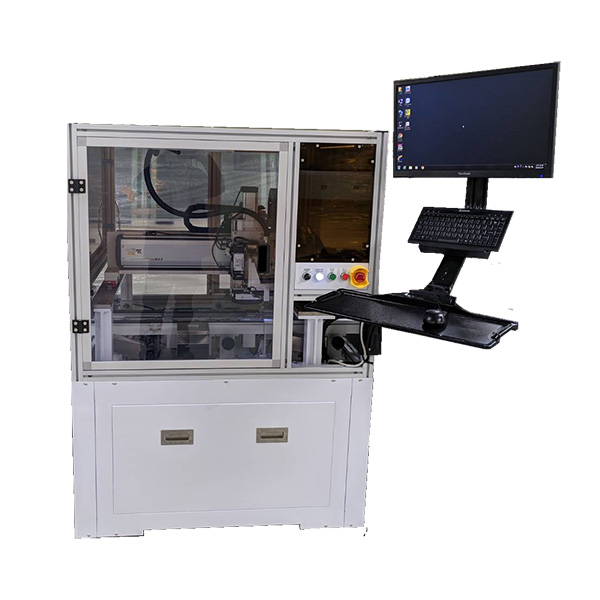

InLine inkjet machine
InLine inkjet machine
Detailed specifications
Device Specifications : | |
Device Dimensions | 1000(L)×1100(W)×1700(H)(mm) |
Equipment accuracy | ±0.05mm |
Travel itinerary | X 650mm , Y 550mm , Z 100mm |
Inkjet moving speed | X 300mm/s , Y 300mm/s , Z 200mm/s |
The scope of work | Track width adjustable 50-350 mm |
Allowable plate thickness | 2mm |
Power supply | Simplex 220V , Air pressure 5Kg/cm2 |
Device function :
1.All kinds of plate printing
2.Compatible with different brands of inkjets
3.visual inspection
4.Applicable industries: packaging and testing/electronic/automotive PCB related products,printing serial numbers for product shipment control
5.Can print one/two-dimensional barcode, clear code, serial number, barcode, batch number, etc. to meet customer needs
6.Can be connected in series with SMT line inkjet
Production Product Example
